Home > Product > SPE > Biotage > Instruments

Á¦ Ç° ¸í : RapidTrace+, SPE ÀÚµ¿È­ ÀåÄ¡ - column¿ë
Á¦ Á¶ »ç : Biotage
Á¦Ç°ÄÚµå : C50000
    ¡¤ °ü·ÃÀÚ·á:RapidTrace¢ç+ Brochure
RapidTrace¢ç+ User Manual
Cleaning and Maintenance
User Report


»ó¼¼¼³¸í

RapidTrace+ ÀÚµ¿È­ SPE ¿öÅ©½ºÅ×À̼Ç
Rapid Automated Sample Preparation for Routine Processing and Method Development
¡î 100 samples/hr ó¸® (10 samples ¿ë)
¡î 10 units¡æPC ¿¬°á
¡î °¢ ½Ã·á ¶Ç´Â ¸ðµâ¿¡ °³º° method ¼öÇà °¡´É
¡î 1, 3, 6 mL Ä÷³ ó¸®
¡î ½Ã·áó¸® : 0.1~14 mL (3mL¿ë) / 0.1~40 mL (6mL¿ë)
¡î pH, Solvent ³óµµ,flow rate, etc Á¶Àý
¡î 8 solvents
¡î 4 wastes
¡î Magnetically Encoded Rack Áö¿ø : ·¢¿¡ method ÇÒ´ç¡æÀÚµ¿½ÇÇà

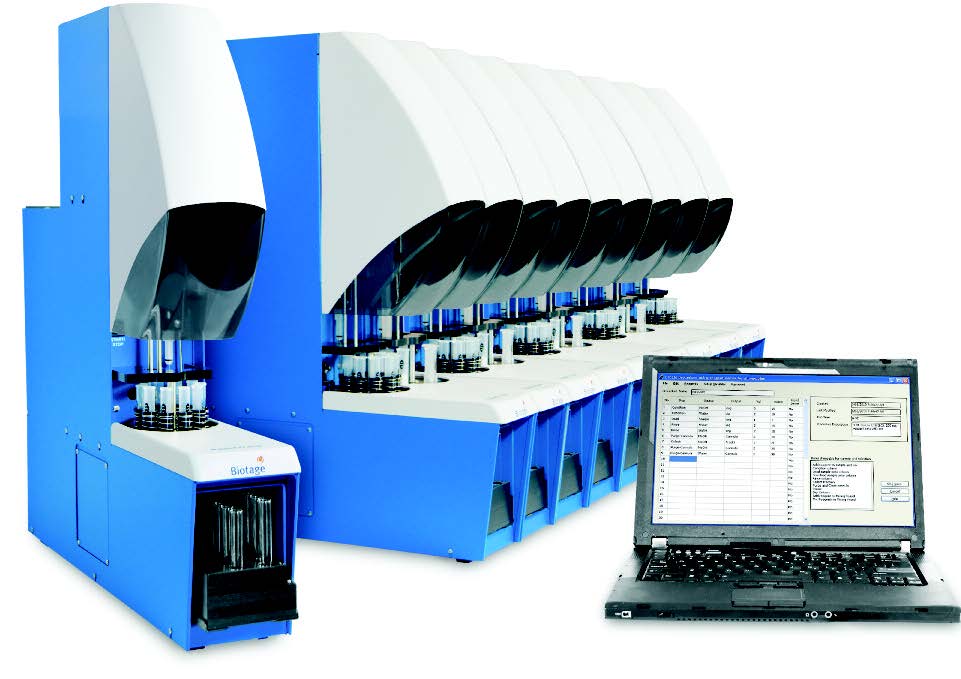

RapidTrace with PC
Ordering Information
Part Number Description Qty
Biotage RapidTrace¢ç+ : º»Ã¼
C50000 RapidTrace+ 3mL for 10 columns of 1mL & 3mL 1
C125713 RapidTrace+ 6mL for 5 columns of 1mL, 3mL & 6 mL 1
C52006 RapidTrace+ Start-Up Kit - ÁÖ¹® ´ç 1 kit
*Kit ±¸¼º*
RapidTrace+ Software CD, Validation CD, Tubing Kit
1

Start-Up Kit : Çʼö Ãß°¡ ±¸¸Å Ç°¸ñ
C59815 Start-Up Kit for RapidTrace+ 3mL - module ´ç 1 kit 1
C125810 Start-Up Kit for RapidTrace+ 6mL - module ´ç 1 kit 1
Rack-1
Rack-2
Rack-3
*Kit ±¸¼º*
59805 Reagent Lines (3m 1/16¡®¡¯ 8°³)
59802 Gas Lines (3m 1/8¡®¡¯ 1°³) & Fittings (3°³)
59803 Waste Lines (3m 4°³)
59806 Gas Conversion Lines (2°³)
59804 Manifold Kit : T-connector, Plug (½Ã¾à & Gas)
38413 Ring-Retaining (8°³) fitting & tubing °áÂø¿ë
59813 Waste & Reagent Label Kit
52231 3mL Column Plunger
59807 1mL Column Adapte Kit (10°³)
128589 Cartridges & Spacer Kit (1mL*2°³, 3mL*10°³) Ä÷³
59808 Magnet kit for Encoding Racks (magnet 7°³)
59810 Dust Cover Kit
59809 Allen Wrenches Kit (2°³)
51871 Plumbing Diagram
81370 2m DB9 M/F Extension Cable (RS232 ÄÉÀ̺í 1°³)
47254 Fuse-1.6 Amp, 5 x 20mm. Fast Acting
Power Code 3°³ (EU, UK, USA)

Rack : Çʼö Ãß°¡±¸¸Å Ç°¸ñ, ÇÊ¿ä Rack ¼±ÅÃ, 1°³ ÀÌ»ó
C50974 13x100 mm Sample Tube & 12x75 mm Fraction Tube 1
C50976 5
C58309 13x100 mm Sample Tubes & 13x100 mm Fraction Tube 1
C56786 16x100 mm Sample Tubes & 16x100 mm Fraction Tube 1
C56536 13x100 mm Sample Tubes & 12x75 mm Fraction Tube 1
C133989 40 ml Scintillation Vial & 16x100 mm Fraction Tubes 1

Çʼö Áغñ Ç°¸ñ : Çʼö Áغñ Ç°¸ñ
ÄÄÇ»ÅÍ : 1´ë ÀÌ»ó
Áú¼Ò °ø±ÞÀåÄ¡ : 10~40 psi
Waste Reservioir : 1~4 °³ Æó½Ã¾àÅë

Technical Specs
Waste outlets 4 separate
Gas inlet (optional) 1-gas inlet, 2.8 bar maximum
Connections RS232 Input: Connects the module to the controller RS232 Output
Dimensions 10 cm x 55 cm x 60 cm (W x D x H)
Weight 14,5 kg
Power Requirements 50–60 Hz, 100–240 VAC ¡¾10%
Column sizes 1, 3 or 6 mL
Sample size 0.1 mL to 14 mL C50000 – RapidTrace+ Workstation 3 mL (0.1 to 40)
Syringe pump Load Volume 0.1 mL to 5.8 mL
Flow rates 0.1 mL/min to 42 mL/min (0.006 mL/sec to 0.7 mL/sec)
Liquid Handling Accuracy Volumes 3.0 mL ¡¾ 1%
Mixing Capability Cycle Maximum mixing volume of 5.0 mL in mixer
Liquid Sensing Volumes of 1.2 mL or larger
Solvent inlets 8 reagent inlets, individually configurable aspirate/dispense ra

Application Notes
AN749, Melamine from milk
AN730, Dioxins & Furans from soil
AN704, EPH from soil
AN727, Basic Drugs from Biological Fluids
AN726, Basic Drugs, Tricyclic Antidepressants from blood
AN728, Cyclosporine from blood
AN744, Catecholamines from plasma
AN724, Vitamin D from plasma
AN725, Cocaine metabolite from urine
AN748, EtG from urine
AN729, Morphine & Codeine from urine
AN763, Pain Management Drugs from urine
IST1015, THC-COOH from urine by ISOLUTE C8
IST1024A, THC-COOH from urine by ISOLUTE THC



Advantages
• More samples per headcount
• More samples per headcount
• Faster turnaround of results
• Improved quality, precision, accuracy and sensitivity
• Consistency of preparation
• Compliance with regulatory requirements
• Improved safety
• Quick response to peak or unexpected work loads

Compatible with 1, 3 and 6 mL SPE Columns
Increased bed height enables the use of a wider range of SPE cartridges including all ISOLUTE¢ç and EVOLUTE¢ç bed masses allowing for flexibility in methodology.
Rack-2

Larger sample volumes
A new 5 position rack for 40 mL scintillation vials allows for larger sample volumes to be processed, often desired for food and environmental applications.

Delay Start feature
Easily leave extracted samples unattended. Samples are freshly prepared when you return.

Modular design allows for up to 10 linked units
10 RapidTrace¢ç+ systems can be controlled by a single computer. The Modular design allows users to start with one module and expand up to 10 linked units. Modules within a group can run different methods independently and if one module is shut down for operator attention, other units remain operational so that sample throughput is not halted.

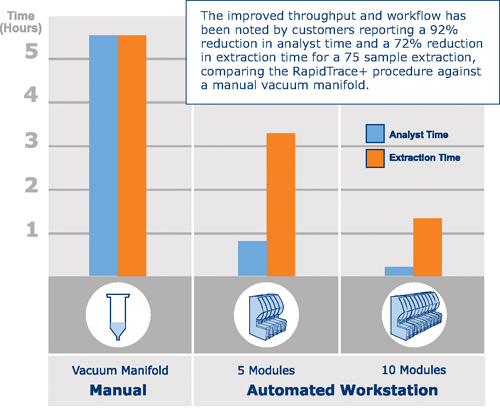

chart_00

Accelerated methods development and optimization
Utilizing the easy-to-use interface, it is simple to implement a structured, rational strategy for optimum SPE conditions in experiments.

Readily transferable methods
Methods stored in the RapidTrace¢ç+ controller can be instantly recalled and transferred to other units with 100% confidence

Positive Pressure Syringe Displacement
Positive pressure displacement allows for accurate processing and improves reproducibility in flow rate sensitive methods.

Turret_01

Safety and Security
Enclosed working parts ensures operator safety and reduced exposure to solvents and hazardous compounds. Additionally, password protected control software limits access to methods ensuring method security. Combined with magnetically encoded racks, run initiation is simplified and the possibility of loading an incorrect procedure is reduced.

8 Solvent Inlet Lines
Allows for more flexible use of solvents and provides an excellent system for method development.

Segregated Waste Lines
Three segregated waste lines allows for separate aqueous, organic and biological waste disposal to simplify hazardous waste handling and reduce disposal costs.

Simple and Reliable
Simple, rugged design with a minimum of moving parts and easily accessible consumables allows for a robust system with minimum ¡°down-time¡±.

Fast and Easy Method Development with Easy-to-Use Software
Utilizing the familiar Microsoft¢ç Windows¢ç interface, operators can easily implement a structured, rational strategy for method-development to determine optimum processing conditions for each sample. The methods can be written in minutes and recalled in seconds. Optimization of processing conditions is possible in a fraction of the time compared with conventional manual techniques. Column formats, reagents, concentrations and flow rates can be thoroughly explored as the system allows for incremental manipulation of any parameter (eg. pH, solvent concentration, cartridge type, flow rate etc)in order to determine effects on recovery and precision. Operators can insert, delete or manipulate steps and easily adjust parameters.

Methods can be assigned to an individual sample or by module. The methods stored in the RapidTrace+ controller can be easily transferred to other RapidTrace+ workstations. Additionally, methods can be saved and run concurrently or true, unattended, ¡°multi-method¡± sample processing. This unique and rational method design capability dramatically speeds the development of rugged and reliable methods.

Compliance Validation
The RapidTrace+ Start-up Kit and Software, includes a Validation Manual that allows operators to walk through the validation process of their RapidTrace. This ensures that RapidTrace¢ç+ provides the consistently clean extracts required for today¡¯s sophisticated analytical instruments and regulatory bodies. The Validation Plan defines the methods and documentation utilized in the development, execution and reporting of a validation for a RapidTrace Workstation. It addresses Installation, Operation, and Performance Qualification. This comprehensive document enables operators to meet GLP, GMP and GOP requirements.

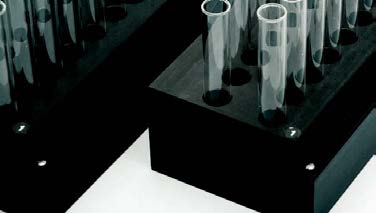

Magnetically Encoded Racks
Magnetically Encoded Racks enable the user to designate a specific method to a rack. When using magnetically encoded racks, the method does not have to be initiated via the controller software, because the module reads the magnets and automatically knows which method to run. The module runs the number of samples corresponding to the number of sample test tubes placed in the rack. This means that software control of the system can be bypassed and methods will not be altered during routine operation. Labs around the world find this useful in production mode.
